| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SPG2305201 |
| Minimum Order Quantity: | 5 Pieces |
| Price: | $260/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 50 Dyas |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 1500 Pieces/Month |
| Material: | 20Cr2Ni4 | Module: | 12 |
|---|---|---|---|
| Diameter Pitch: | 2.117 | Face Width: | 80 |
| Manufacturing Type: | Gear Grinding | Hardness: | 58-62 HRC |
| Highlight: | Forging Alloy Steel Spur Gear,12 Module Alloy Steel Spur Gear,20Cr2Ni4 Metal Spur Gear |
||

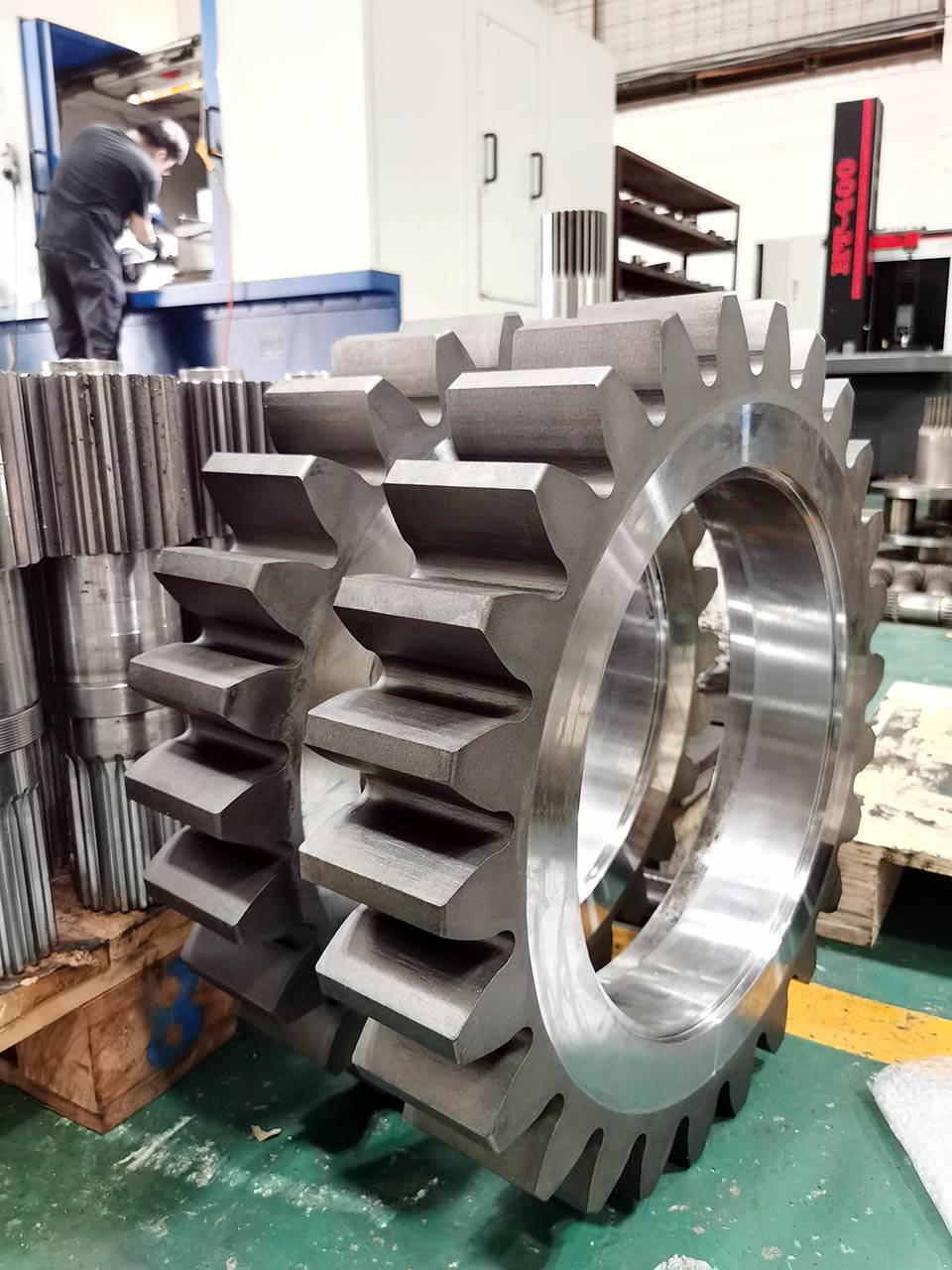

Customized 20Cr2Ni4 Forging Alloy Steel 12 Module Spur Gear For Mining Machinery
Material: 20Cr2Ni4 Steel
Foring Steel with UT Inspection.
Gear teeth profile grinding.
Designed for heavy duty mining machinery.
Spur gear is the most common type of gear.
It is easier to manufacture and the cost is lower compared with the spiral bevel gears.
Spur gears are typically used for lower speed applications, although they can be used at nearly any speed.
Spur gears only produce radial forces (no axial forces), but the method of tooth meshing causes steep stress
on the gear teeth and excessive noise production.
| Products | Spur Gear |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gears |
| Gear Teeth manufacturing | Gear Grinding |
| Gear Teeth Grinding | √ |
| Module (M) | 12 |
| Number of Teeth (Z) | 37 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 0° |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
