Standardized Procedures for Herringbone Gears Consistent Automotive and Machine Tool Industries

Basic Information
Place of Origin: CHINA
Brand Name: YIZGEAR
Minimum Order Quantity: 1 Sets
Packaging Details: Plywood Crate
Delivery Time: 60 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Month
Detail Information
Manufacturing Process: Gear Teeth Milling Size: Various Sizes Available
Type: Cylindrical Gear Helix Angle: 25°
Manufacture: Gear Shapping Pressure Angle: 20 Degrees
Highlight:

Standardized Herringbone Gears

,

Machine Tool Herringbone Gears

,

Automotive Herringbone Gears


Product Description

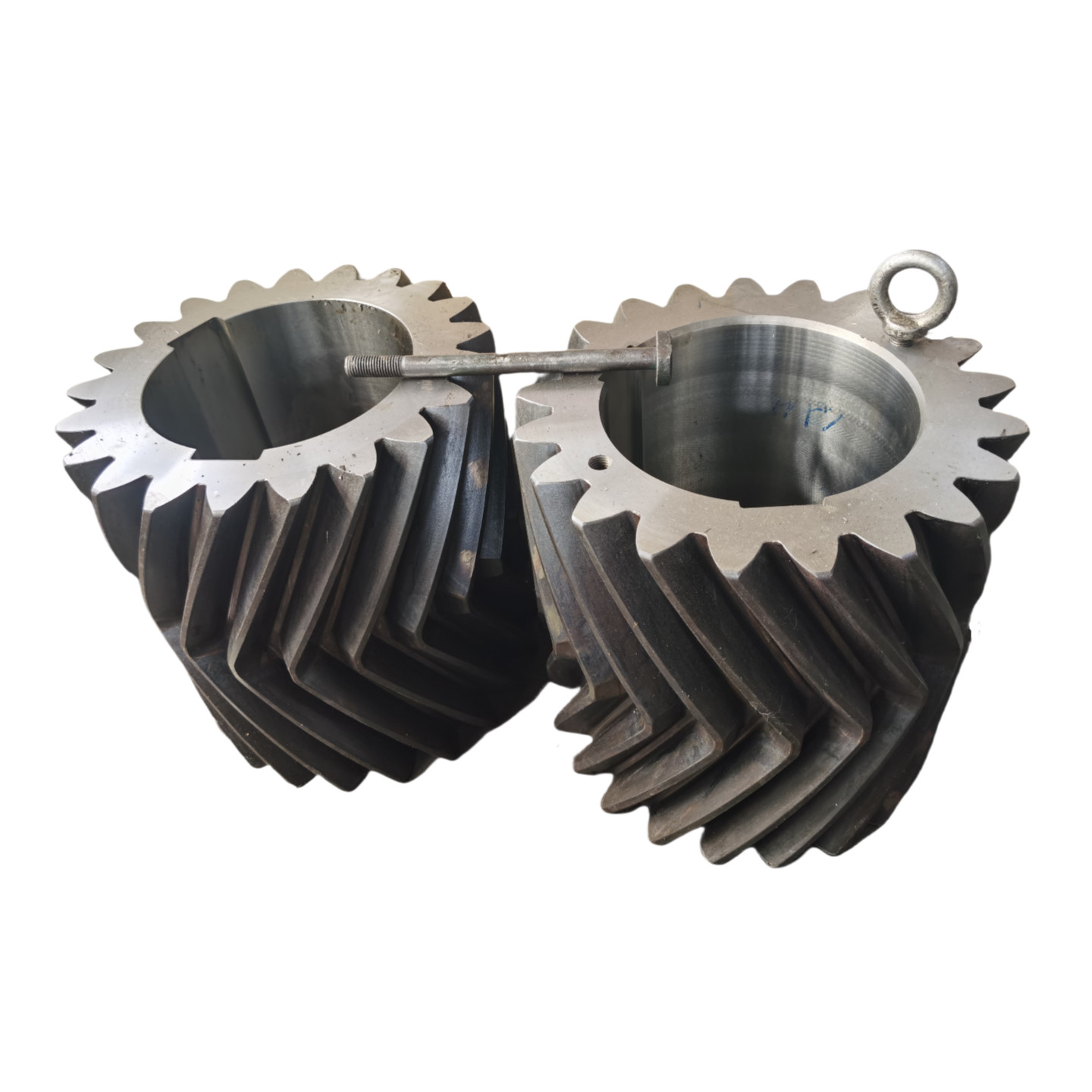

1)Description of Herringbone Gear

The herringbone gear is produced by a series of precise manufacturing processes such as cutting,

forging, and heat treatment, with gears featuring herringbone tooth profiles.

The manufacturing accuracy of this gear has a significant impact on its transmission performance.

2)Feature of Herringbone Gear

The manufacturing process is complex and requires high-precision processing equipment

and specialized technology; the tooth shape processing needs to strictly control the accuracy

to ensure the meshing quality of the gears; the manufacturing process involves multiple procedures,

including blank manufacturing, tooth shape processing, heat treatment and surface treatment, etc.

3)Advantage of Herringbone Gear

The precise manufacturing process ensures that the gears have high precision,

thereby enhancing the transmission efficiency and stability; advanced manufacturing technologies

enable the processing of complex structures, meeting the requirements of special working conditions;

standardized manufacturing procedures guarantee the consistency of product quality.

4)Application of Herringbone Gear

In the automotive industry, high-precision herringbone gears are used in automatic transmissions to

enhance the smoothness of gear shifting; in the machine tool manufacturing sector,

high-quality herringbone gears ensure the high precision of transmission for machine tools.

Products Herringbone Gear
Custom Made
Gear Profile Type C​ylindrical Gear
Gear Teeth manufacturing Gear Milling
Gear Teeth Grinding
Module (M) 12
Number of Teeth (Z) Custom
Pressure Angle (α) 20°
Helix Angle (β) Custom
Teeth Accuracy Grade ISO 8-9 Grade
Heat Treatment Quenching & Tempering
Surface Hardness 230-260 HB



STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi   18XГT   SMK22
20Cr2Ni4   20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA   40XH2MA/
40XHMA
4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
